Analysis of the Growing Popularity of LED Lighting Silicon Optics

Silicon optics are high-transmittance optical LED lenses made from high-elasticity, high-light-transmission optical-grade liquid silicone rubber material, manufactured by LSR (Liquid Silicone Rubber) injection molding. These LED optics replace traditional materials such as glass, PC (Polycarbonate), or PMMA (Polymethyl Methacrylate), achieving effective reflection and refraction of light.

Previously, optical lenses commonly found on the market were often made from PC or PMMA. However, with rapid advancements in technology and significant improvements in light source efficiency, the heat generated at the bottom of the light source has dramatically decreased. More heat is now converted into light radiating upwards, leading to a substantial increase in the energy density of thermal radiation. Under conditions where other factors remain unchanged, when lumen efficiency increases, the temperature of the optics also rises, which can lead to issues such as cracking or thermal melting. Against this backdrop, silicon optics have emerged and gained widespread attention and popularity. Below is an in-depth analysis of the reasons behind the growing popularity of silicon optics.

1. Performance Advantages

· High Light Transmittance: Silicon optics have a light transmittance of up to 94%. As the thickness decreases, transmittance further improves, effectively reducing light loss and ensuring efficient light transmission.

· Excellent Yellowing Resistance: After 5000 hours of testing under 85°C and 85% humidity (85/85 test), silicon optics maintain their original color with no yellowing.

· High and Low-Temperature Stability: Silicon optics exhibit excellent temperature resistance, maintaining stability in a wide temperature range from -40°C to 200°C, making them suitable for various extreme environments.

· Superior Weather Resistance: Silicon optics are UV-resistant, resistant to micro-cracking, and meet the UL 94 V-1 fire resistance rating, ensuring safety and reliability.

· Outstanding Explosion-Proof Performance: With a soft texture, silicon optics offer exceptional explosion-proof and impact resistance, making them less likely to break and ensuring safe use.

2. Adapting to Modern Technological Development Trends

· Meeting the Demand for Lightweight Design: Silicon optics, with their low density and lightweight characteristics, perfectly align with the modern technological focus on lightweight design.

· Adapting to Complex Optical System Designs: Optical-grade liquid silicone has exceptional processing properties, and its high fluidity enables the realization of complex microstructural designs. Furthermore, silicon optics can be integrated with other materials through over-molding, providing significant design flexibility to meet the diverse needs of modern optical systems.

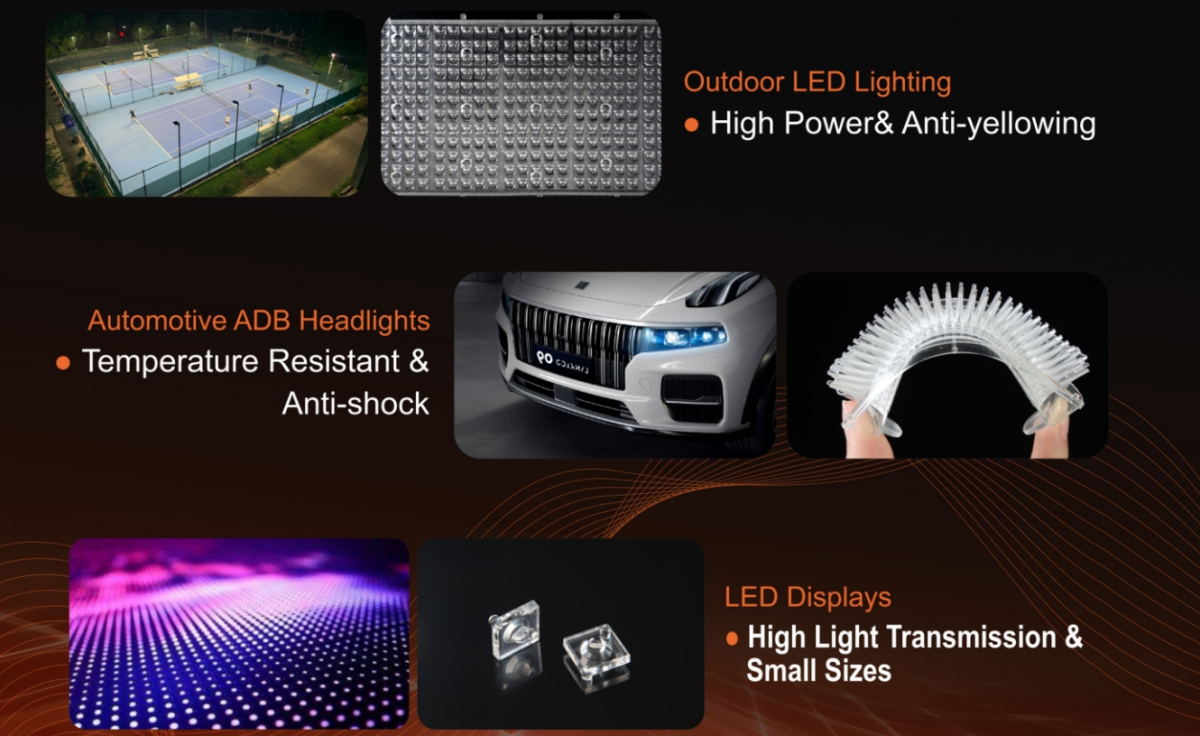

3. Wide Range of Applications

LED lighting silicone optics, with their exceptional performance, have been widely applied in various fields:

· Automotive Industry: Silicon optical lenses perform particularly well in automotive HUD (Head-Up Display) and ADB (Adaptive Driving Beam) systems. Their high-precision design, high light transmittance, and lightweight characteristics make them the preferred material for this field.

· Commercial Lighting: Optical silicone lenses are resistant to yellowing and UV, and can be made in large sizes, making them ideal for long-duration, high-power lighting applications.

· Aerospace Industry: Due to their excellent temperature resistance and explosion-proof performance, silicon optics have found wide application in lighting fixtures used in the aerospace sector.

· Backlight Lighting: Silicone optics can be made in ultra-small sizes and integrated with other materials through over-molding, making them especially suitable for use in backlight lighting systems.

In conclusion, LSR-molded silicon optics are gradually becoming more popular due to their diverse performance advantages and high adaptability to modern technological trends. With continuous technological advancements and the expanding range of applications, the market prospects for silicon optics are undoubtedly set to grow even further.

Since 2019, our factory has been producing silicon optics and has grown to become one of China's leading silicon lens suppliers. We have assembled an international engineering team from China, Japan, and South Korea, introduced high-precision mold processing equipment, production equipment, and testing instruments from abroad, and have been providing OEM services to Fortune 500 companies worldwide with a 100% success rate.

If you are interested in or have any needs related to silicon optics, please feel free to contact us at any time. We look forward to hearing from you.
