Silicone Lens
Advantage
94% light transmittance, made of super crystal optical liquid silicone raw materials
Resistance to high heat, high humidity and UV exposure
Resistance to scratches, cracks and vibrations
Design flexibility and mold replication for LED lighting
Silicone led lens can be over-molded with other materials
Factory price, fast delivery, strict quality control
DESCRIPTION
Specification
| Product Name | Manufacture Optical Grade Silicone Led Lens For LED Display Screen |
| Model Number | HHSL02 |
| Material | Optical Liquid Silicone |
| Hardness | 80 Shore A |
| Mold Type | LSR Injection Molding |
| Mold Cavity | Customized |
| Refractive Rate | 1.41 |
| Density | 1.08 |
| Machine | ARBURG Horizontal LSR Injection Molding Machine |
| Color | Clear |
| Surface Polish | A1 |
| Process | LSR Injection Molding- Inspection- Deflashing- Inspection- Dust Free- Inspection- Packing- Inspection- Delivering |
| MOQ | 1,000pcs/ size |
| Machine tonnage | 120T |
| Workshop | Class 100,000 clean optical workshop and class 10,000 light performance inspection room |
| Application | LED Display Screen Lighting, LED Lighting |
Application
LED Lighting
Automotive
Display
Product Information

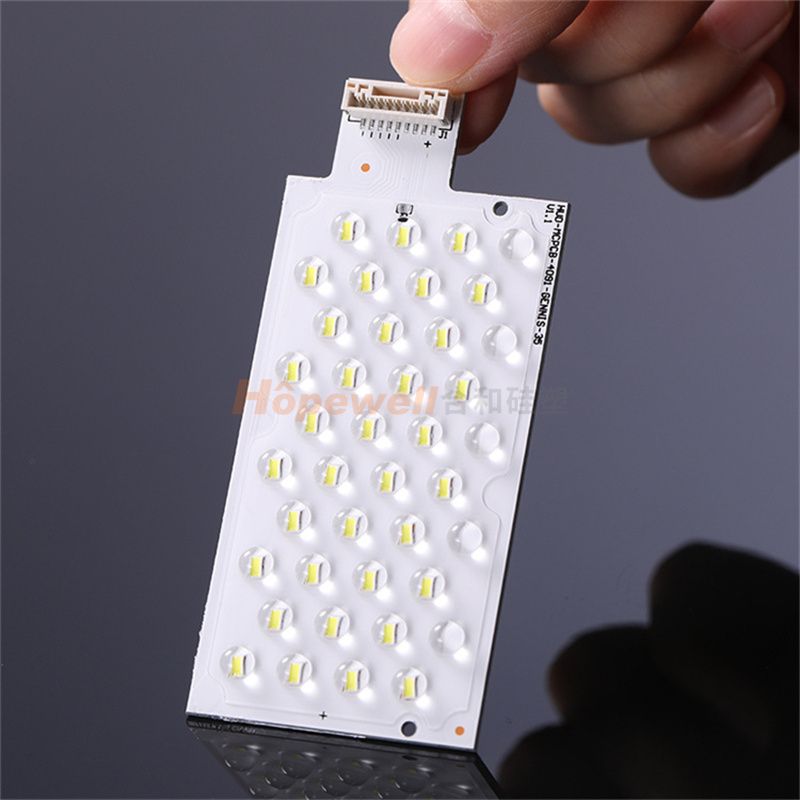

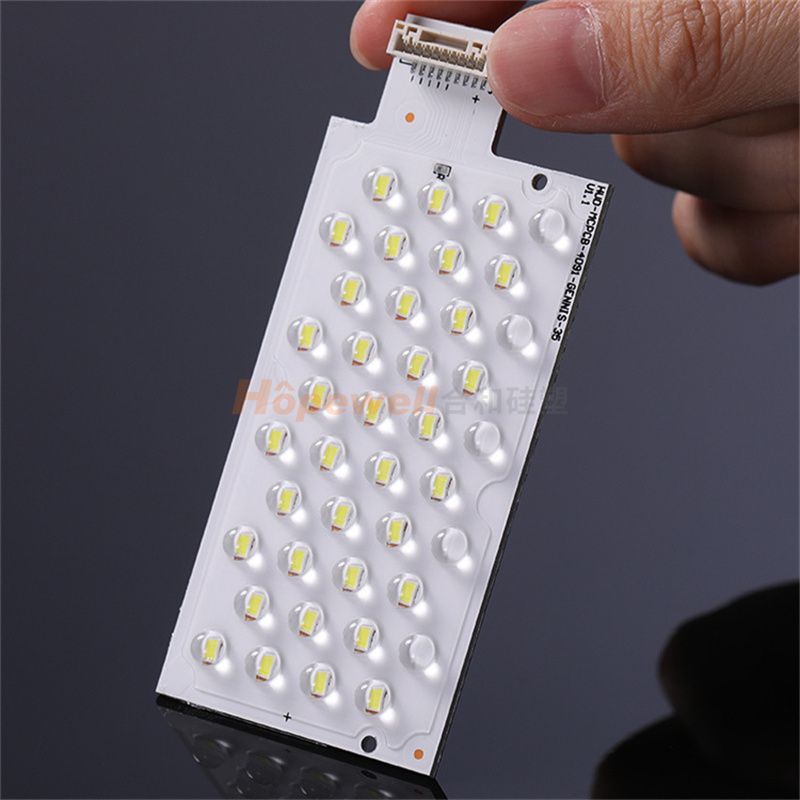

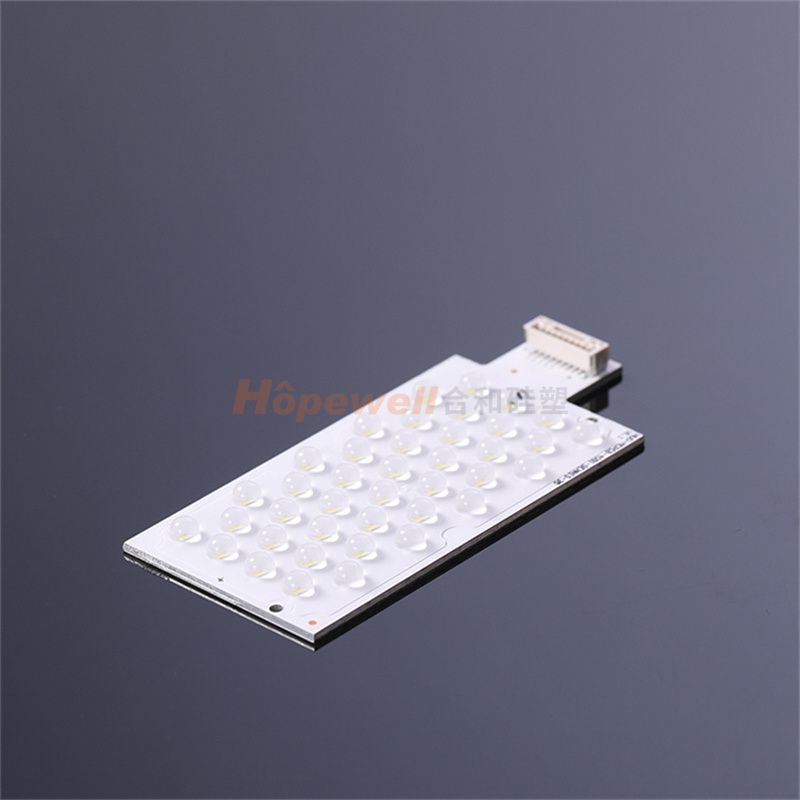

Narrow beam led lens led lens is also know as silicone focusing lens, made of super crystal and flame resistant optical liquid silicone raw materials, can be used for led display screen lighting and led lighting.
1. With excellent processing properties, especially in LED lighting and optics, the led lens reflectors can achieve various complex and lightweight designs.
2. Anti-yellowing: No Change after 3000 hours 85℃/ 85% Humidity Aging testing,
3. Adapt to complex special shape and partial under-cut.
1. Having a professional team, both the mold making team and LSR injection molding team, to assess design feasibility and trial production stability, also the successful experience to ensure your project to be launched successfully.
2. We have 9 Sets ARBURG Horizontal Liquid Injection Molding Machines,3 Sets Vertical Liquid Injection Molding Machines,Class 100,000 Clean Production Workshop,Class 10,000 Full Inspection Room,1 Set EVERFINE Light Distribution Performance Test System for silicone optics.
| Optical Silicone Material Supplier | Material Series | Hardness(Shore A) |
| DOW CORNING | DOWSIL™ MS | 74/84 |
| MOMENTIVE | LSR7180 | 5/30/60/70/80/90 |
| WACKER | LUMISIL® | 50/60/70/78 |
| DONESON | DSA-7000 | 30/40/50/60/70/80 |
Manufacturing Process
The process of optical grade silicone led lens is as follow:
LSR Injection Molding- Inspection- Deflashing- Inspection- Dust Free- Inspection- Packing- Inspection- Delivering
Packaging
For optical silicone led lens, to keep the product clean and not deformed while in transportation and in storage, normall, the packaging as follow.
1pc per PE film, 10pcs/ Blister Tray, 20 Trays/ Carton （Quantities will vary due to product sizes are different）
FAQ
1
Are you a manufacturer or a trading company?
We're a manufacturer of silicone molding products, with about 10,000 square meters production workshops.
2
Can your factory design optical silicone led lens?
We regret that we mainly do OEM designs, we don't have product designers to design silicone led lens.
3
What's the maximum length for silicone led lens can you make?
For now, the max. length we can make is 530mm.
4
What should be offered for customize liquid silicone led lens?
Please provide 3D and 2D drawings with performance and tolerance requirements.
5
Can I talk to your engineers?
Yes, we can set up a meeting through Google meet or Teams, so you can communicate with our engineers directly.
6
What's the level of your clean production workshop?
Currently, for Liquid Injection Molding, the workshop is Class 100,000, while for plastic, our factory has Class 10,000, or even Class 1,000 clean workshops.
7
Why we should choose your factory to be your partner for LSR injection molding silicone lens?
With a professional optics doctors and masters to offer technical support, from the very beginning to evaluate the feasibility of your design to mass production. Also, our factory has many advanced and imported mold making equipment, silicone injection molding and performance inspection equipment.
8
Can I visit your factory?
Yes, highly welcome to visit us. Please contact our sales to schedule the timing.
