Silicone Valve
Advantage:
LFGB&FDA approved platinum liquid silicone raw materials
7 days* 24 hours inverted leak-proof test
One squeeze, one dispensing, dispensing angle within ±15°
Custom leak-proof silicone valve with non-stick slit cut
Daily capacity reaches to 200,000pcs per automation production line
Free samples can be provided for quality checking
DESCRIPTION
Specification
| Product Name | Liquid Injection Molding Food Grade 16mm Leak-proof Silicone Valve For Hydration Bottle |
| Model Number | HHSV05 |
| Material | FDA& LFGB Approved Food Safe Liquid Silicone |
| Color | Clear Color |
| Hardness | 40 Shore A |
| Outer Diameter | 16mm |
| Slit Cut Type | Cross Slit (Welcome customized slits) |
| Slit Cut Size | 11*11mm |
| Mold Type | Liquid Silicone Injection Molding |
| Process | Tool Design - Tool Manufacturing - Liqid Injection Molding - Whole Piece Inspection - Punching Slit Cut - Add Talcum Powder - Punching Shape - Quality Checking - Dust Free Packing - Shipping |
| Mold | Private Mold |
| MOQ | 50,000 PCS |
| Daily Capacity | 200,000pcs/ line |
| Mold Cavity | 108CAV |
| Machine | LSR Injection Molding Machine |
| Machine Tonnage | 160T |
| Workshop | Class 100,000 Clean Production Workshop |
| Application | Leak-proof Silicone Valve can be used for Hydration Water Bottles |
| Intercoms | EXW, FOB, CIF |
Application
Water enhancer, soda water, juice, milk, coffee, sports water and other beverage dispensing
Ketchup, honey, mayonnaise, salad sauce, mustard sauce and other food dispensing
Body lotion, shampoo, facial cleanser, sanitizer, dish-washing liquid and other liquid dispensing
Product Information
Leak-proof silicone valves are also called no drip silicone valve cover gaskets, made of FDA&LFGB liquid silicone material, designed with cross slit cut, with good sealing and leak-proof function, so to prevent leakage.
1. The leak-proof silicone valve is made of silicone material, which has excellent sealing performance. During the transportation of various liquids and gases, leak-proof silicone valves can effectively prevent leakage and ensure the stability and safety of fluid transportation.
2. No drip silicone valve has excellent flexibility, can control the flow control very well.
3. The 16mm water bottle silicone valve is processed by liquid silicone rubber injection molding, daily capacity reaches to 200,000pcs per line.
4. The cross slit cut of no leaking silicone valve is with zero clearance, so to make sure it can passed 24 hours/7 Days Inverted Leak-proof Test, and there is no leakage.
5. The tolerance of silicone valves' curved wall thickness is controlled within 0.03mm, dispensing angle is controled withine 30 degrees.
6. Leak-proof silicone valve is one squeeze, one dispensing, no leakage, no extra splits.
1. We have been producing leak-proof silicone valves for more than 10 years and have rich experience in liquid injection molding and compression molding, welcome to customize silicone valves.
2. With Automated machines, for large orders, our company can implement automated production to meet customer mass production needs and speed up delivery.
3. Having a complete management system, once a problem occurs, we can trace the problem and the staff who handled it as soon as possible, so that we can solve the problem for customers at first time.
4. Complete certifications, such as: ISO9001, ISO14001, ISO13485, IATF14949, etc.
If you are interested in leak-proof silicone valves, please feel free to contact us, thanks.
How to Use
Want to know how to use this kind of silicone valve, check the video here:
Manufacturing Process
Tool Design - Tool Manufacturing - Liqid Injection Molding - Whole Piece Inspection - Punching Slit Cut - Add Talcum Powder - Punching Shape - Quality Checking - Dust Free Packing - Shipping

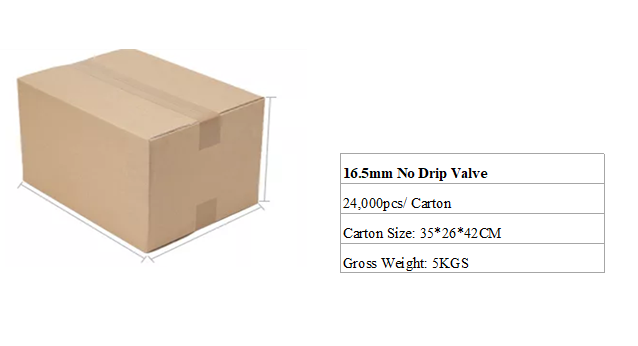

Packaging
For leak-proof silicone valve, to keep the product clean and not deformed while in transportation and in storage, normally, the packaging as follow:
| Item Name | PCS/ PE Bag | PCS/ Carton | Carton Size | N.W. | G.W. |
| Leak-proof Silicone Valve | 2,000pcs | 24,000pcs | 35*26*42CM | 4.5KGS | 5KGS |
FAQ
1
Are you a manufacturer or a trading company?
We're a manufacturer of silicone molding products, with about 10,000 square meters production workshops.
2
Can you provide free samples?
Free samples can be provided for quality checking, freight cost need be charged.
3
What are the advantages of Hopewell to preduce silicone valves?
Hopewell started producing silicone valves in 2011, we also have professional engineering team, precision mold manufacturing department and perfect quality control department, a 100,000-level clean production workshop, and has passed ISO9001, ISO13485, IATF16949 and ISO14001 certifications.
4
What is your MOQ for silicone valve?
Our moq is 50000 pcs for four sizes cross slit silicone valves in public mold; for customized silicone products, the final quotation shall prevail.
5
Can you accept OEM/ ODM orders?
Currently we only accept OEM orders.
6
What information do I need to provide for custom silicone valves?
Please provide 2D and 3D drawings (STP format) or actual samples, then our engineering team will provide DFM for your confirmation.
7
What is the lead time for custom silicone valves?
For prototype molds, the lead time for silicone valves is about 7-15 working days; for production molds, the lead time is about 15-45 working days.
8
Can I use your silicone valves mold?
We only have four cross slit silicone valves mold can be used, other molds are customized by other customers.
9
Can you provide proof of raw materials?
Yes, we can provide MSDS, FDA, LFGB test reports for confirmation.
10
Can you provide plastic valve seat samples?
We have 4 sizes plastic valve seats in public mold, the outer diameters are 11.85mm, 12.3mm, 14.6mm and 18.6mm. Free samples are available, please contact us for more information.
11
Can i vist your factory?
Of course, highly welcome.
